ELR00000

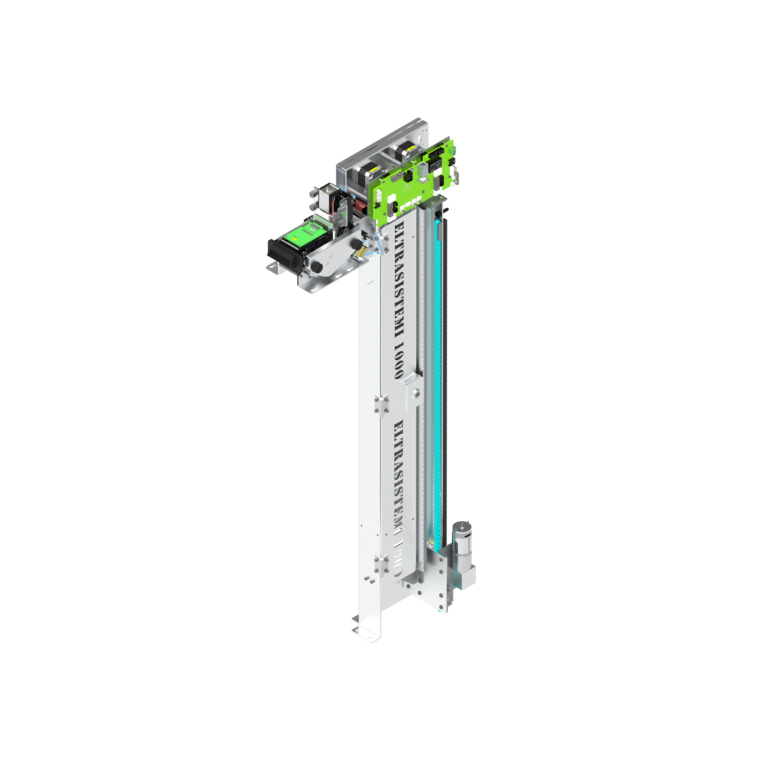

Basic Bottom Up Card Dispenser
Main features
- Side frame supporting cartridge
- Stepping motor and photosensors ticket positioning
- Contactless Card Management based on Mifare Standard ISO/IEC 14443 A/B + ISO15693
- Easy card loading and maintenance
- Full/Empty status sensors
- Dispensing and collecting functions
- Microprocessor based electronics
- SMD low consumption electronic circuits
- Communication by means RS232 serial interface or USB (Ethernet
- Overall description
- Card/Ticket specifications
- Environmental
Outline dimensions
1075(H) x 231(L) x 152(W) mm
Weight
12 Kg (Approximately)
Electronics
Specific PCB
Stacker capacity
500/1000 pcs
Ticket motion
Stepping motor
Transport method
Rolls
Ticket sensors
Photosensors
Output interface
RS232/USB (Ethernet optional)
Power requirements
+24V DC +/-10% 6A
Cartridge
980(H) - 1000 Cards x 0.76 mm
Barcode scanner
CCD/Laser or 1D/2D Image
Paper
PET and PVC card
Length
85.60 mm
Width
53.98 mm
Thickness
From 0.40 to 1.00 mm
Operating temperature
From 0 to + 55°C
Storage temperature
From -20 to + 60°C
Relative humidity
From 20 to 80%
